Mixpac Two-Component DP 200-70-10 Pneumatic Dispensing Gun





Sulzer Mixpac DP 200-70-10 Pneumatic Dispenser for Epoxy Dispensing

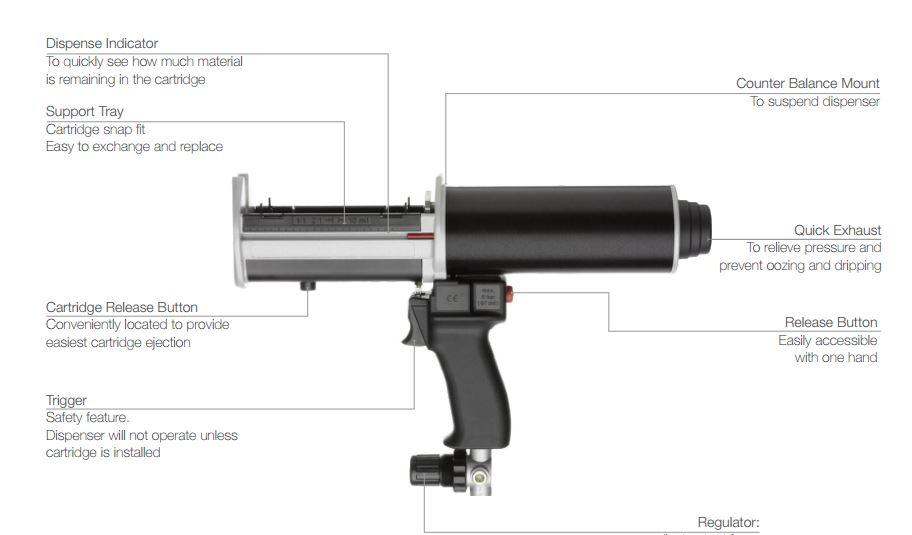

sulzer mixpac 2 part pneumatic dispenser DP 200 70 10 schematic

Sulzer Mixpac Two-Component Pneumatic Dispensing Gun



Specifications

  • Cartridge capacity: 200mL (nominal)
  • Cartridge ratio: 10:1
  • Designed specifically for Mixpac C and F System Cartridges
  • Weight 1.66kg / 3.66lbs
  • Length: 402mm / 15.8in
  • Maximum Thrust: 2.2kN
  • Tool material: cast aluminium and reinforced nylon
  • Cartridge capacity: 200mL
  • Air inlet: G 1/4in
  • Max operating pressure: 6.8 ba

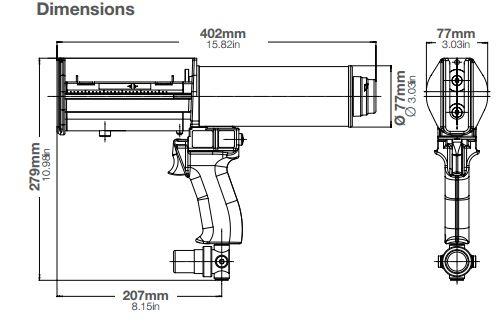

sulzer mixpac 2 part pneumatic dispenser DP 200 70 10 dimensions


Cartridge Compatibility Table

Sulzer Mixpac DP 200-70-10 Dispensing Gun
Cartridge* Cartridge Series Volume (ml) Ratio Material****
AC 200-10-10-01 AC** 200 10:1 PP
AC 200-10-10-04 AC** 200 10:1 PP
AF 200-10-10-05 AF*** 200 10:1 PP
AF 200-10-20-05 AF*** 200 10:1 PBT
NOTES:
 * Other cartridge variants are available. Please contact This email address is being protected from spambots. You need JavaScript enabled to view it.
** For AC series cartridge, the "-01" variants come with UM 13-PP, retaining nut for attaching 13mm ID mixers     and AC series cartridges "-04" variants come with UM 10-PP, retaining nut for attaching 10mm and smaller ID mixers
*** For AF series cartridges "-01 variants come with short legged cap"     and AF series cartridges "-05 variants come with long legged cap"
**** PP = polypropylene, PA = Nylon. PBT = polyester
