Sulzer Mixpac DMA 75-00-10 Dispenser
Sulzer Mixpac Two-Component Manual Dispensing Gun
Specifications
- Cartridge capacity: 75ml nominal
- Cartridge ratio: 1:1
- Designed specifically for AA and AB System Cartridges
- Weight 184g / 0.41lbs
- Length: 109mm / 4.3in
- Tool material: PBT & reinforced nylon
Cartridge Compatibility Table
| Sulzer Mixpac DMA 75-00-10** Dispensing Gun | ||||
| Cartridge* | Cartridge Series | Volume (ml) | Ratio | Material*** |
| AA 050-01-10-01 | AA | 50 | 1:1 | PP |
| AA 050-01-10-03 | AA | 50 | 1:1 | PP |
| AA 050-01-30-02 | AA | 50 | 1:1 | PA |
| AA 050-02-10-01 | AA | 50 | 2:1 | PP |
| AA 050-02-10-03 | AA | 50 | 2;1 | PP |
| AA 050-02-30-01 | AA | 50 | 2:1 | PA |
| AB 050-01-10-04 | AB | 50 | 1:1 | PP |
| AB 050-01-20-01 | AB | 50 | 1:1 | PP |
| AB 050-01-30-02 | AB | 50 | 1:1 | PA |
| AB 050-02-10-01 | AB | 50 | 2:1 | PP |
| AB 050-02-30-02 | AB | 50 | 2;1 | PP |
| AB 050-02-30-03 | AB | 50 | 2:1 | PA |
| NOTES: | ||||
| * Other cartridge variants are available. Please contact |
||||
| **Using plungers PLA 050-04 and PLA 050-10 will convert the dispenser to 4:1 and 10:1 ratio, respectively. | ||||
| *** PP = polypropylene, PA = Nylon. PBT = polyester | ||||
Sulzer Mixpac DMA 59-00-10 Dispenser
Sulzer Mixpac Two-Component Manual Dispensing Gun
Specifications
- Cartridge capacity: 50mL and 75ml nominal
- Cartridge ratio: 1:1 and 2:1 and 10:1
- Designed specifically for AA and AB System Cartridges
- Weight 184g / 0.41lbs
- Length: 109mm / 4.3in
- Tool material: PBT & reinforced nylon
Cartridge Compatibility Table
| Sulzer Mixpac DMA 59-00-10** Dispensing Gun | ||||
| Cartridge* | Cartridge Series | Volume (ml) | Ratio | Material*** |
| AA 050-01-10-01 | AA | 50 | 1:1 | PP |
| AA 050-01-10-03 | AA | 50 | 1:1 | PP |
| AA 050-01-30-02 | AA | 50 | 1:1 | PA |
| AA 050-02-10-01 | AA | 50 | 2:1 | PP |
| AA 050-02-10-03 | AA | 50 | 2;1 | PP |
| AA 050-02-30-01 | AA | 50 | 2:1 | PA |
| NOTES: | ||||
| * Other cartridge variants are available. Please contact |
||||
| **Using plungers PLA 050-04 and PLA 050-10 will convert the dispenser to 4:1 and 10:1 ratio, respectively. | ||||
| *** PP = polypropylene, PA = Nylon. PBT = polyester | ||||

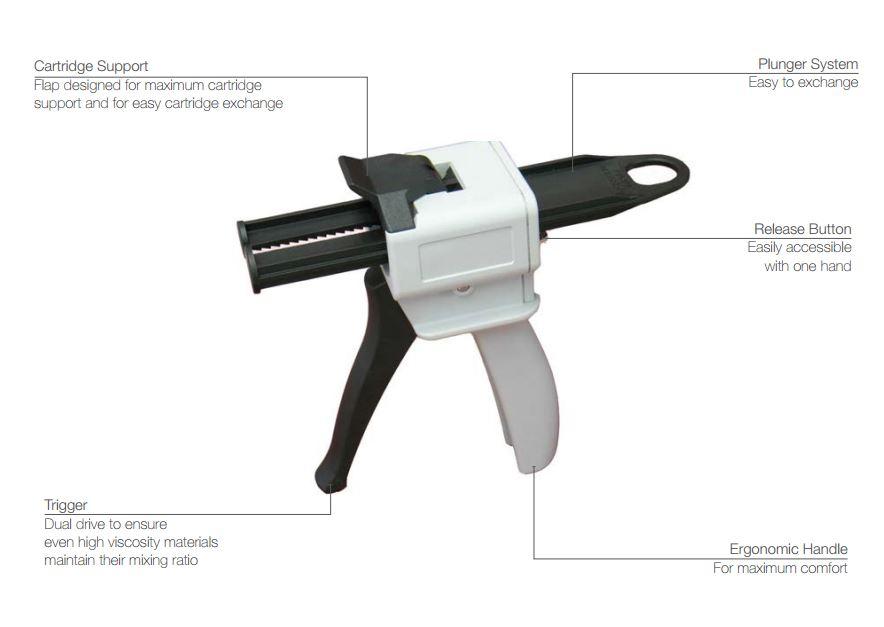

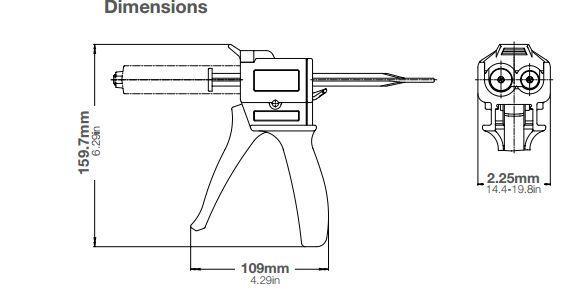

Sulzer Mixpac Manual Dispensing Gun DS 51-04-00 For S-Series Cartridges
Sulzer Mixpac Two-Component Manual Dispenser
Specifications
- Cartridge capacity: 50mL and 75ml (nominal)
- Cartridge ratio: 4:1
- Designed specifically for BS-System Cartridges
- Weight 215g / 0.47lbs
- Length: 109mm / 4.3in
- Tool material: PPO & reinforced nylon
Cartridge Compatibility Table
| Sulzer Mixpac DM 200-01 Dispensing Gun | ||||
| Cartridge* | Cartridge Series | Volume (ml) | Ratio | Material |
| AC 200-01-10-01 | AC** | 200 | 1:1 | PP |
| AC 200-01-10-04 | AC** | 200 | 1:1 | PP |
| AC 200-01-30-01 | AC** | 200 | 1:1 | PA |
| AF 200-01-10-01 | AF*** | 200 | 1:1 | PP |
| AF 200-01-10-05 | AF*** | 200 | 1:1 | PP |
| AF 200-01-30-01 | AF*** | 200 | 1:1 | PA |
| NOTES: | ||||
| * Other cartridge variants are available. Please contact |
||||
| ** For AC series cartridge, the "-01" variants come with UM 13-PP, retaining nut for attaching 13mm ID mixers and AC series cartridges "-04" variants come with UM 10-PP, retaining nut for attaching 10mm and smaller ID mixers | ||||
| *** For AF series cartridges "-01 variants come with short legged cap" and AF series cartridges "-05 variants come with long legged cap" | ||||
Sulzer Mixpac DMA 51-00-10 Dispenser
Sulzer Mixpac Two-Component Manual Dispensing Gun
Specifications
- Cartridge capacity: 50mL and 75ml nominal
- Cartridge ratio: 1:1 and 2:1
- Designed specifically for AA and AB System Cartridges
- Weight 184g / 0.41lbs
- Length: 109mm / 4.3in
- Tool material: PBT & reinforced nylon
Cartridge Compatibility Table
| Sulzer Mixpac DMA 51-00-10** Dispensing Gun | ||||
| Cartridge* | Cartridge Series | Volume (ml) | Ratio | Material*** |
| AA 050-01-10-01 | AA | 50 | 1:1 | PP |
| AA 050-01-10-03 | AA | 50 | 1:1 | PP |
| AA 050-01-30-02 | AA | 50 | 1:1 | PA |
| AA 050-02-10-01 | AA | 50 | 2:1 | PP |
| AA 050-02-10-03 | AA | 50 | 2;1 | PP |
| AA 050-02-30-01 | AA | 50 | 2:1 | PA |
| NOTES: | ||||
| * Other cartridge variants are available. Please contact |
||||
| **Using plungers PLA 050-04 and PLA 050-10 will convert the dispenser to 4:1 and 10:1 ratio, respectively. | ||||
| *** PP = polypropylene, PA = Nylon. PBT = polyester | ||||
Plungers for Changing DMA 51-00-10 Ratio
- PLA 050-01 1:1
- PLA 050-02 2:1
- PLA 050-04 4:1
- PLA 050-10 10:1
Sulzer Mixpac DMA 51-01-10 Manual Dispenser
Specifications
- Weight 184g / 0.41lbs
- Length: 109mm / 4.3in
- Tool material: PBT & reinforced nylon
- Cartridge capacity: 50/75mL
- Cartridge ratio: 1:1, 2:1, 4:1, 10:1*
*Ratios are changed using different plungers
Cartridge Compatibility Table
| Sulzer Mixpac DMA 51-00-10** Dispensing Gun | ||||
| Cartridge* | Cartridge Series | Volume (ml) | Ratio | Material*** |
| AA 050-01-10-01 | AA | 50 | 1:1 | PP |
| AA 050-01-10-03 | AA | 50 | 1:1 | PP |
| AA 050-01-30-02 | AA | 50 | 1:1 | PA |
| AA 050-02-10-01 | AA | 50 | 2:1 | PP |
| AA 050-02-10-03 | AA | 50 | 2;1 | PP |
| AA 050-02-30-01 | AA | 50 | 2:1 | PA |
| AB 050-01-10-04 | AB | 50 | 1:1 | PP |
| AB 050-01-20-01 | AB | 50 | 1:1 | PP |
| AB 050-01-30-02 | AB | 50 | 1:1 | PA |
| AB 050-02-10-01 | AB | 50 | 2:1 | PP |
| AB 050-02-30-02 | AB | 50 | 2;1 | PP |
| AB 050-02-30-03 | AB | 50 | 2:1 | PA |
| NOTES: | ||||
| * Other cartridge variants are available. Please contact |
||||
| **Using plungers PLA 050-04 and PLA 050-10 will convert the dispenser to 4:1 and 10:1 ratio, respectively. | ||||
| *** PP = polypropylene, PA = Nylon. PBT = polyester | ||||
Plungers for Changing DMA 51-00-10 Ratio
- PLA 050-01 1:1
- PLA 050-02 2:1
- PLA 050-04 4:1
- PLA 050-10 10:1
