TAH 160-840LL / Nordson 7700939 / Static Mixer (nozzle)
TAH 160-840LL / Nordson 7700939 / Static Mixer (nozzle)
Static Mixer 7700939 Specifications

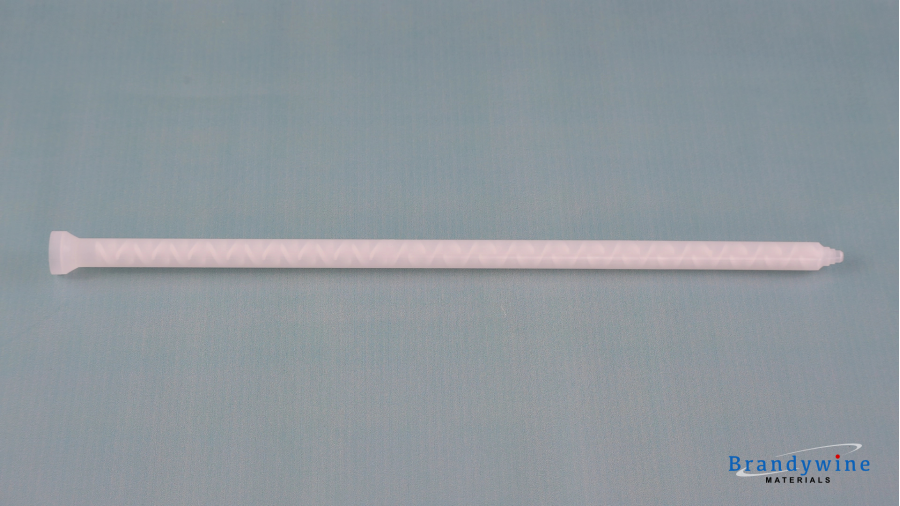

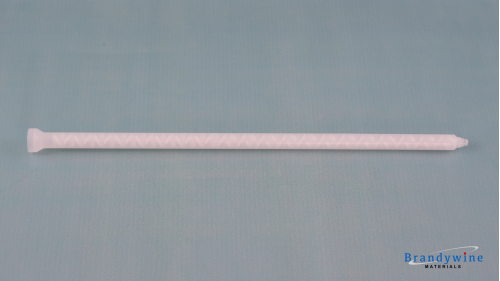

Nordson static mixer nozzle 7700939 is used for both cartridge dispensing and machine (meter mix) dispensing. 7700939 has a bell inlet which fits Nordson Valve manifolds (machine mixing) and large volume cartridges - greater than 50 ml. A metal jacket is recommended if the working pressure inside the nozzle exceeds 150 psi (10 bar) (only used with meter mix valves or manifolds).
| Property | Value | Property | Value |
| Product | 7700939 | Element Material | Polyacetal |
| Old Product Number | TAH 160-840LL | Housing Material | Polypropylene |
| # of Elements: | 40 | Tip Style | Luer Lock |
| ID inch | 0.37 | Outlet inch | 0.12 |
| ID mm | 9.3 | Outlet mm | 3.05 |
| Length inch | 14.14 | Max Housing Pressure* | 300 |
| Length cm | 35.9 | Max Housing Pressure** | 21 |
*psi at 75°F
**bar at 30°C
Nordson nozzle 7700939 is used for mixing epoxy, silicone, acrylic, methacrylate, polyurethane, polysulfide and other adhesives as well as sealants and coatings. Typical applications include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
