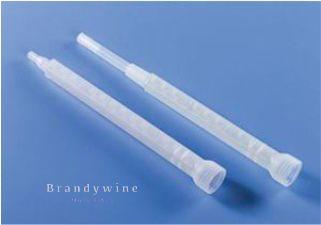

Nordson TAH 7701370 Plastic TurboStatic Mixer (nozzle)
TAH 180AN-818 / Nordson TAH 7701370 Plastic TurboStatic Mixer (nozzle)
Description: Plastic disposable (turbo) square static mixers
Nordson plastic mixing nozzle 7701370 has a patented design –a square housing geometry and square mixing elements..7701370 is shorter than a comparable cylindrical nozzle. The shorter length allows more accurate deposition of adhesive and minimizes waste.The nozzle comes equipped with an integral nut.
Static Mixer 7701370 Specifications
| Property | Value | Property | Value |
| Product | 7701370 | Element Material | Polyacetal |
| Old Product Number | TAH 180AN-818 | Housing Material | Polypropylene |
| # of Elements: | 18 | Tip Style | Stepped |
| ID inch | 0.34 | Inlet | Integral Nut |
| ID mm | 8.7 | Retained Volume (ml) | 6.5 |
| Length inch | 5.60 | Max Housing Pressure* | |
| Length cm | 14.2 | Max Housing Pressure** |
*psi at 75°F
**bar at 30°C
The unique design of 7701370 affords better mixing performance than comparable cylindrical static mixers, according to a variety of studies. Nordson static mixer 7701370 is used for mixing epoxy, silicone, acrylic, methacrylate, polyurethane, polysulfide and other adhesives as well as sealants and coatings. Typical applications include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
