MBH 03-16S
Sulzer Mixpac Static Mixer MBH 03-16S

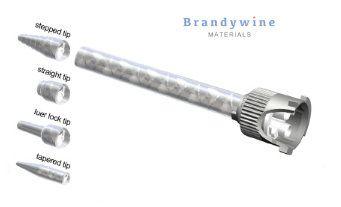

Mixpac Sulzer static mixer MBH 03-16S is used to dispense adhesives from 50 ml AB series and AB S series cartridges - both 1:1 and 2:1 ratios. These plastic nozzles are disposable and feature a simple interlock mounting method for attachment to two-component cartridges.
Static Mixer MBH 03-16S Specifications
| Property | Value | Property | Value |
| Product | MBH 03-16S | Element Color: | White |
| Description | Mixer, 3mm x 16 ELE., 1:1/2:1 | Element Material | PP |
| Old Product Number | MB 3.2-16-S | Housing Type | Cylindrical |
| # of Elements: | 16 | Housing Material | PP |
| ID* mm | 3.2 | Tip Style: | Tapered Tip |
| ID* inch | 0.13 | Attach to Cartridge | Interlock |
| Length mm | 76 | ||
| Length inch | 3.01 |
* inner diameter
Mixpac nozzle MBH 03-16S is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.
Typical applications for dispensing adhesive with Sulzer static mixer MBH 03-16S include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
