MGQ 10-16A

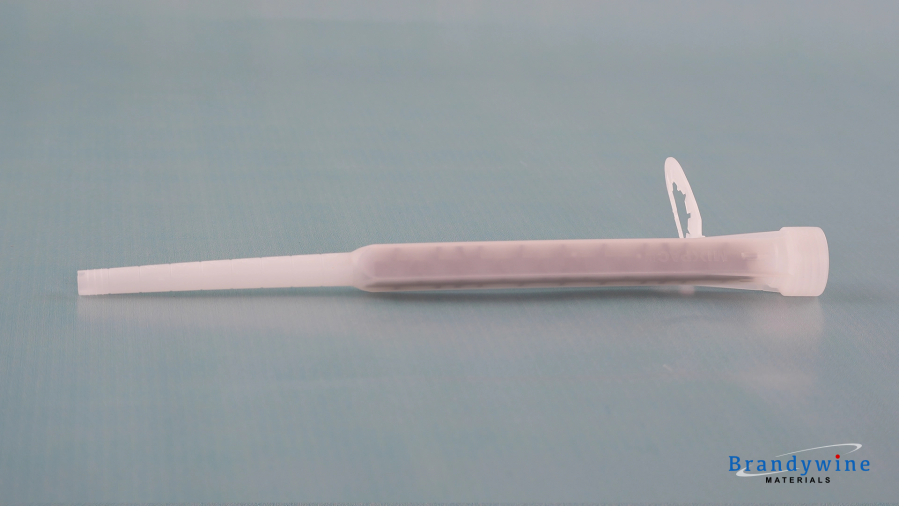

Sulzer Mixpac Static Mixer MGQ 10-16A
Mixpac Sulzer static mixer MGQ 10-16A is used to dispense adhesives from 200 ml, 400 ml, 600 ml and 1,500 ml series C cartridges - both 1:1 and 2:1 ratios. These plastic nozzles are disposable and feature a simple integral nut mounting method for attachment to two-component cartridges.
Static Mixer MGQ 10-16A Specifications
| Property | Value | Property | Value |
| Product | MGQ 10-16A | Element Color: | Green |
| Description | Mixer, Square, 10mm x 16 ELE, 1:1 / 2:1, integrated screw, chem anchor | Element Material | PP |
| Old Product Number | n/a | Housing Type | Square |
| # of Elements: | 16 | Housing Material | PP |
| ID* mm | 10.7 | Tip Style: | Stepped Tip |
| ID* inch | 0.42 | Attach to Cartridge | Integral Nut |
| Length mm | 260 | ||
| Length inch | 10.24 |
* inner diameter
Mixpac nozzle MGQ 10-16A is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.
Typical applications for dispensing adhesive with Sulzer static mixer MGQ 10-16A include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
