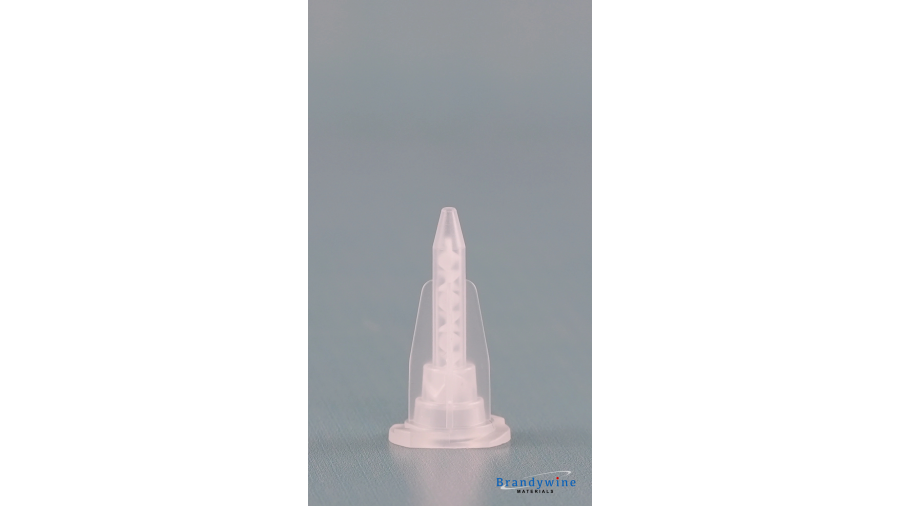

Mixpac Static Mixer MAH 03-13S
Sulzer Mixpac Static Mixer MAH 03-13S
Mixpac Sulzer static mixer MAH 03-13S is used to dispense adhesives from 50 ml AA series cartridges - both 1:1 and 2:1 ratios. These plastic nozzles are disposable and feature a simple twist lock mounting method for attachment to two-component cartridges.
Static Mixer MAH 03-13S Specifications
| Property | Value | Property | Value |
| Product | MAH 03-13S | Element Color: | White |
| Description | Mixer, 3mm x 13 ELE., 1:1/2:1 | Element Material | PP |
| Old Product Number | MA 3.0-13-S | Housing Type | Cylindrical |
| # of Elements: | 13 | Housing Material | PP |
| ID* mm | 3 | Tip Style: | Tapered Tip |
| ID* inch | 0.12 | Attach to Cartridge | Bayonet |
| Length mm | 57 | ||
| Length inch | 2.24 |
* inner diameter
Mixpac nozzle MAH 03-13S is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.
Typical applications for dispensing adhesive with Sulzer static mixer MAH 03-13S include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
