MCQ 08-32T

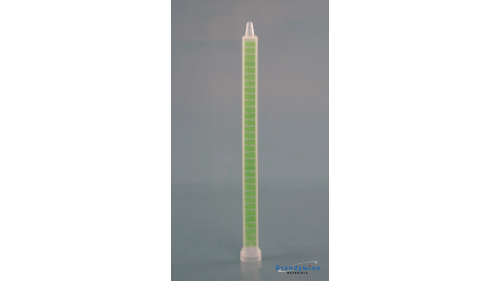

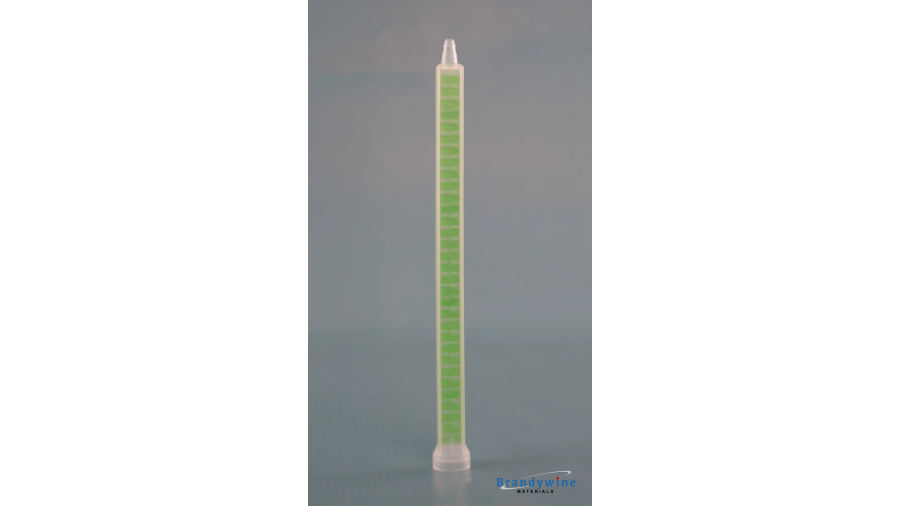

Sulzer Mixpac Static Mixer MCQ 08-32T
Mixpac Sulzer static mixer MCQ 08-32T is used to dispense adhesives from 200 ml, 400 ml, 600 ml and 1,500 ml AC series cartridges - both 1:1 and 2:1 ratios. These plastic nozzles are disposable and feature a integral nut mounting method for attachment to two-component cartridges.
Static Mixer MCQ 08-32T Specifications
| Property | Value | Property | Value |
| Product | MCQ 08-32T | Element Color: | Green |
| Description | Mixer, Square, 8mm x 32 ELE, 1:1/2:1 | Element Material | PP |
| Old Product Number | 300-375 | Housing Type | Square |
| # of Elements: | 32 | Housing Material | PP |
| ID* mm | 8.7 | Tip Style: | Stepped Tip |
| ID* inch | 0.34 | Attach to Cartridge | Retaining Nut |
| Length mm | 186 | ||
| Length inch | 7.32 |
* inner diameter
Mixpac nozzle MCQ 08-32T is used to dispense materials such as epoxy, polyurethane, silicone, acrylic, methacrylate and a variety of other two part adhesives and sealants.
Typical applications for dispensing adhesive with Sulzer static mixer MCQ 08-32T include: electronics, communications, aerospace, automotive, aircraft assembly, wind turbine assembly and repair, home building, construction, concrete repair and many others.
