MP

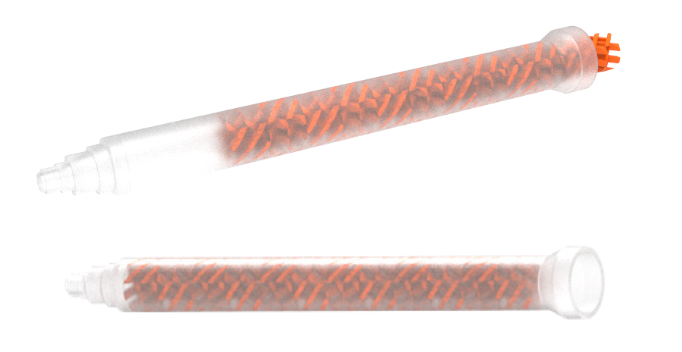

Sulzer Mixpac MP Series Static Mixers

Sulzer Mixpac introduces the NEW MP series of static mixers utilizing "X-Grid Technology". This uniquely designed element is designed to mix extremely high viscosity materials, even systems high loaded with fillers such as fiberglass, plastics and head-conducting pates. The special element geometry allows for extremely efficient mixing. Static mixers using this technology are shorter than the comparable traditional mixer. A huge benefit is the reduction in waste! MP mixers can be used with both cartridges (C-style Mixpac) and meter mix dispense (MMD) equipment. The MP series has 3 styles of mixers: MPF, MPH and MPP. Details are found in the tables below and also in the available PDF literature.

MPF Series Sulzer Static Mizers

Product Elements ID MM ID inch Length mm Length inch
MPF 10-6T 6 10 0.39 115 4.5
MPF 10-9T 9 10 0.39 155 6.1
MPF 10-12T 12 10 0.39 182 7.2
MPF 21-7T 7 21 0.83 305 12.0
MPF 21-9T-01* 9 21 0.83 305 12.0
MPF 21-12T 12 21 0.83 385 15.2
MPF 21-15T 15 21 0.83 465 18.3

MPH Series Sulzer Static Mizers



Product Elements ID MM ID inch Length mm Length inch
MPH 12-8T 8 12 0.47 118 4.6
MPH 12-12T 12 12 0.47 161 6.3
MPH 12-16T-01* 16 12 0.47 201 7.9

MPP Series Sulzer Static Mizers

Product Elements ID MM ID inch Length mm Length inch
MPP 9-20T-01 20 9 0.35 235 9.3



New Product Announcement - PDF

Sulzer Machine Mixers - PDF

Mixpac X-Grid - PDF
